Description

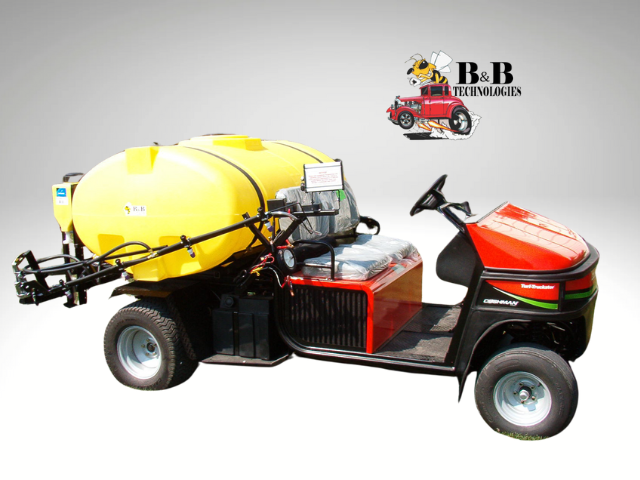

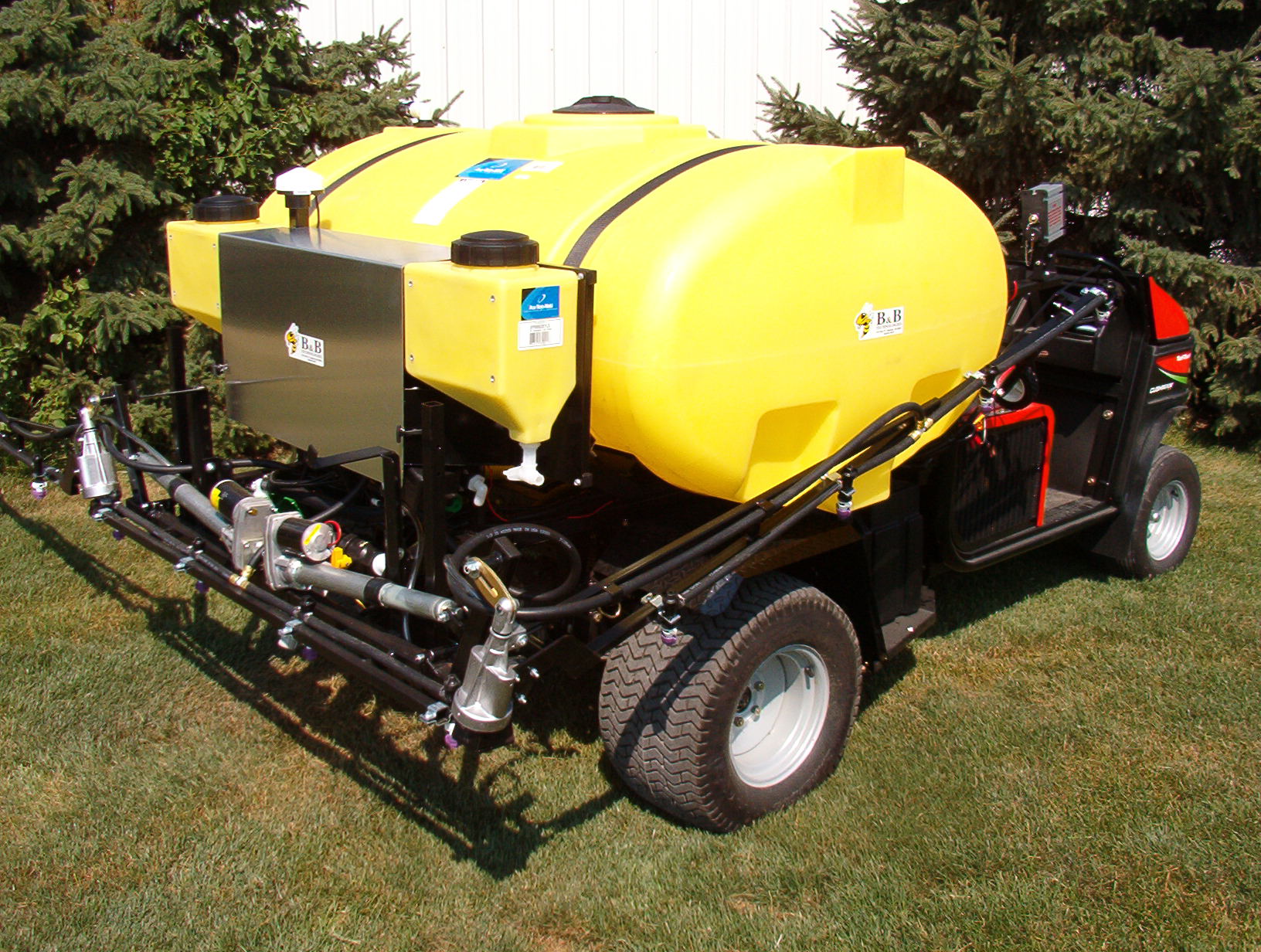

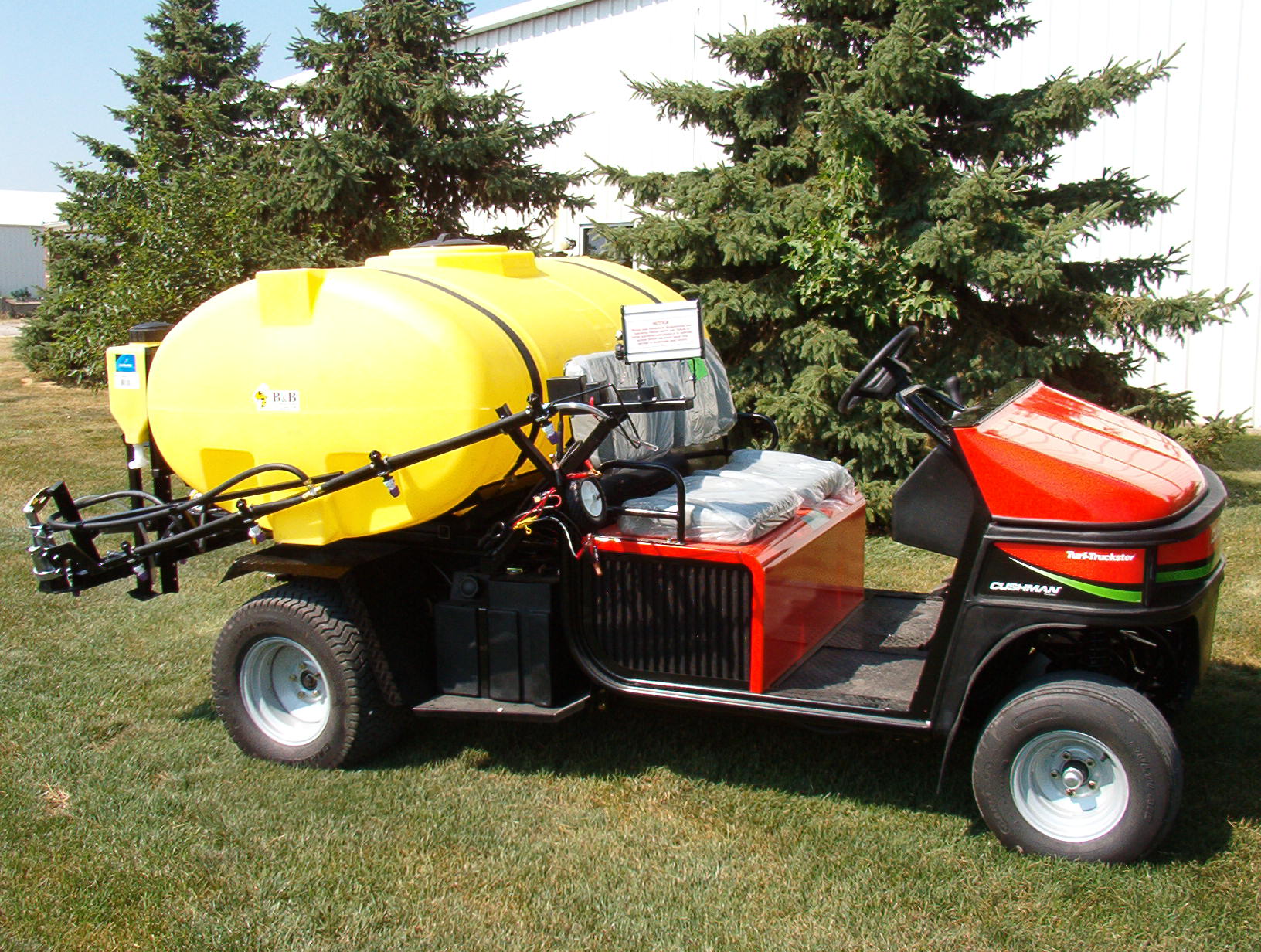

The Model 300 is a 300-gallon sprayer designed specifically for utility trucks. By using a unique tank and boom design, it offers the operator greater safety and spraying accuracy.
Tank
The tank is a low-profile 300 gallon poly with an oversized sump and dual inductor agitation nozzles, that provide excellent mixing action, yet allow complete drainage of the tank.

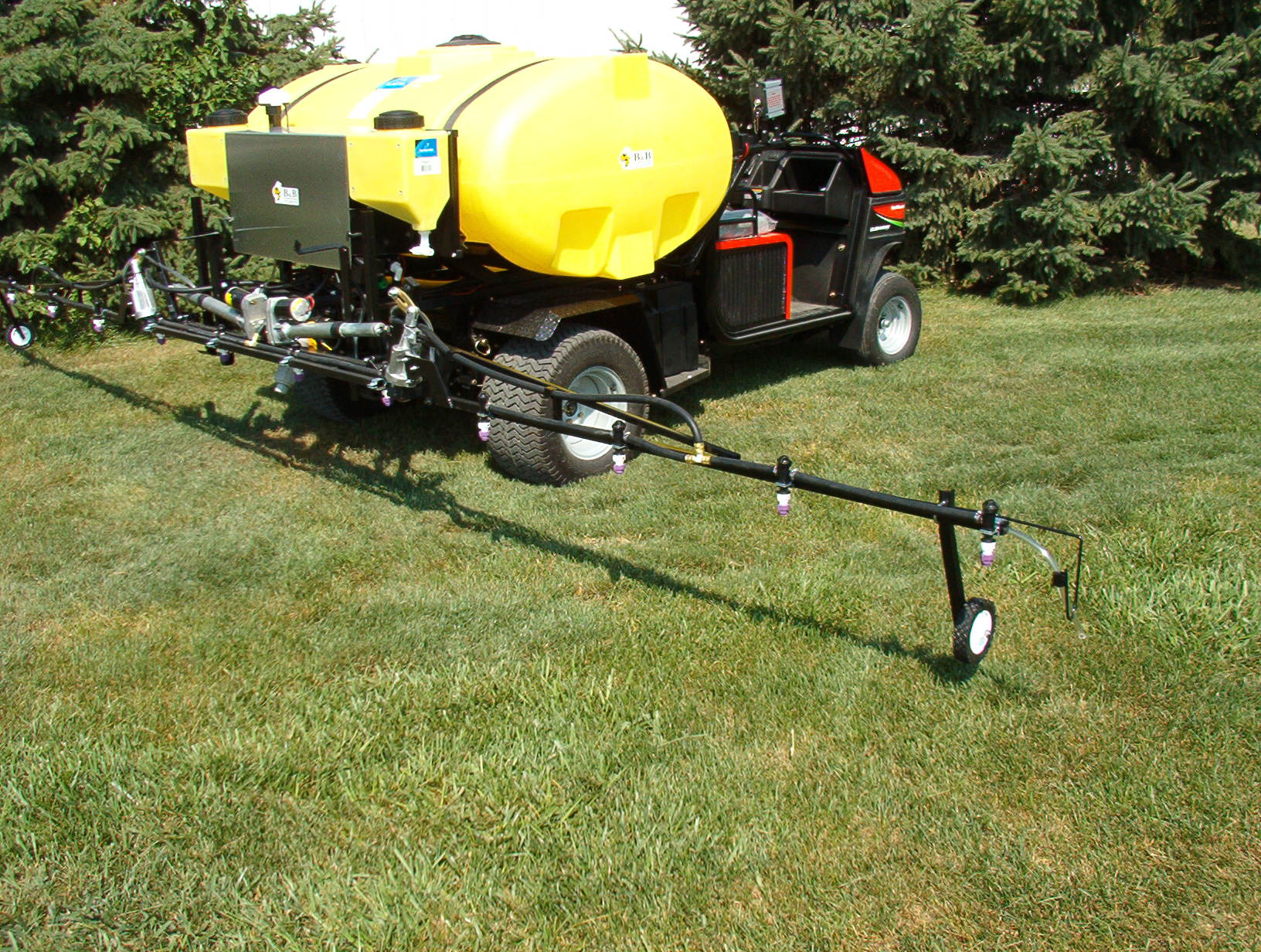

Spray Boom

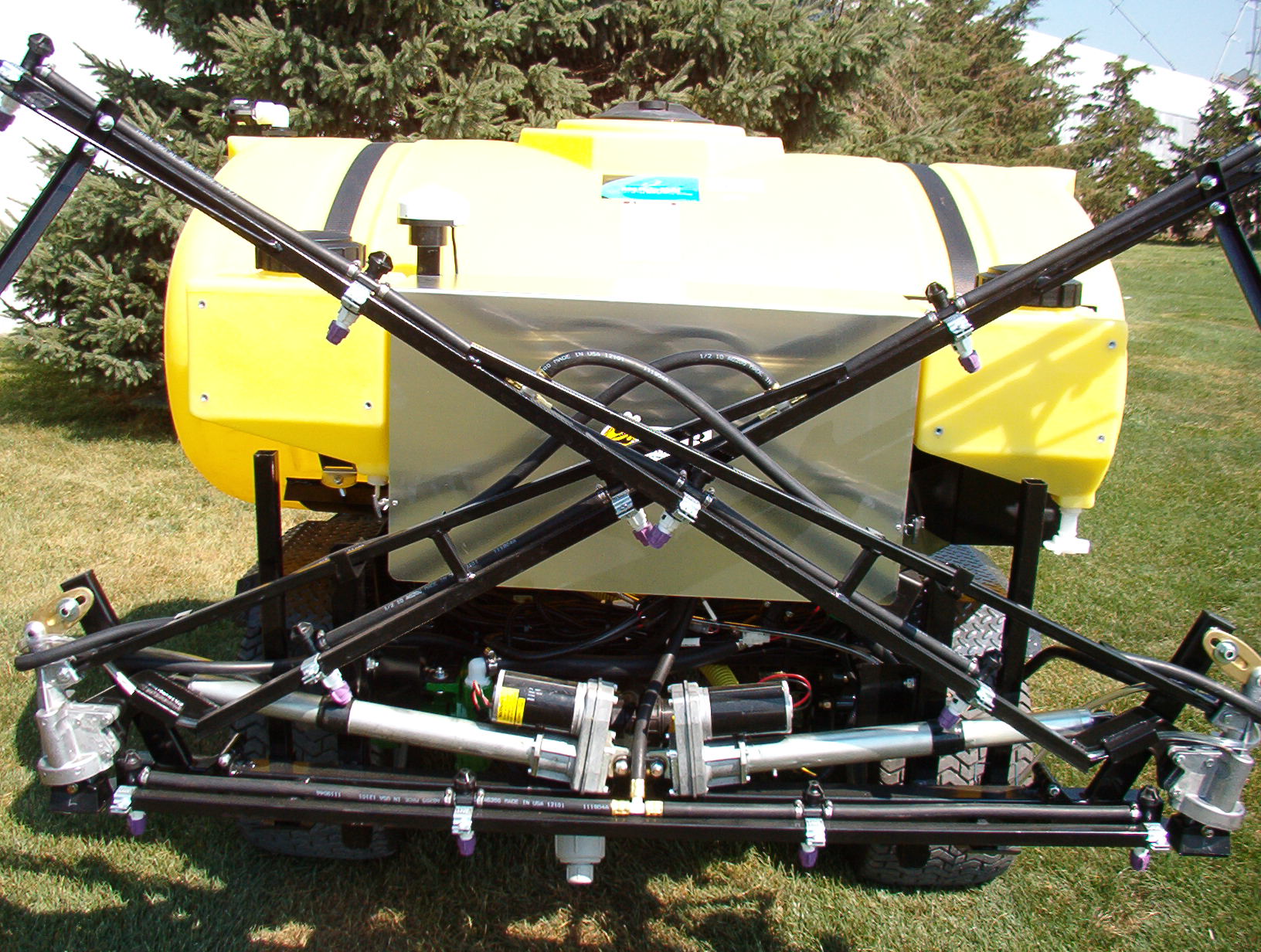

The spray boom is a three sectioned, balanced boom. It has 4-20″ nozzles per section to give greater spraying accuracy and a coverage up to 20′. The boom wings have breakaway action, end guards, and can fold forward or cross in the back. It comes complete with Quick-Jet nozzle caps, no-drip diaphragm check valves, and your choice of nozzles.
Boom Valving
The standard control console with motorized ball valves and a butterfly servo valve give complete control of the 3 boom sections and instant control of pressure. A manual 8-way control valve is also available.
Pump
The high efficiency hydraulic driven pump provides up to 120 psi or up to 75 gal/min and is driven off the vehicles standard hydraulic system.
Frame
The heavy formed steel frame mounts with 2 quick-hitch pins in the back and 2 hold-down pins in the front.
Emergency Wash Tank
All units come complete with an emergency 3-gallon water tank.
Accessories

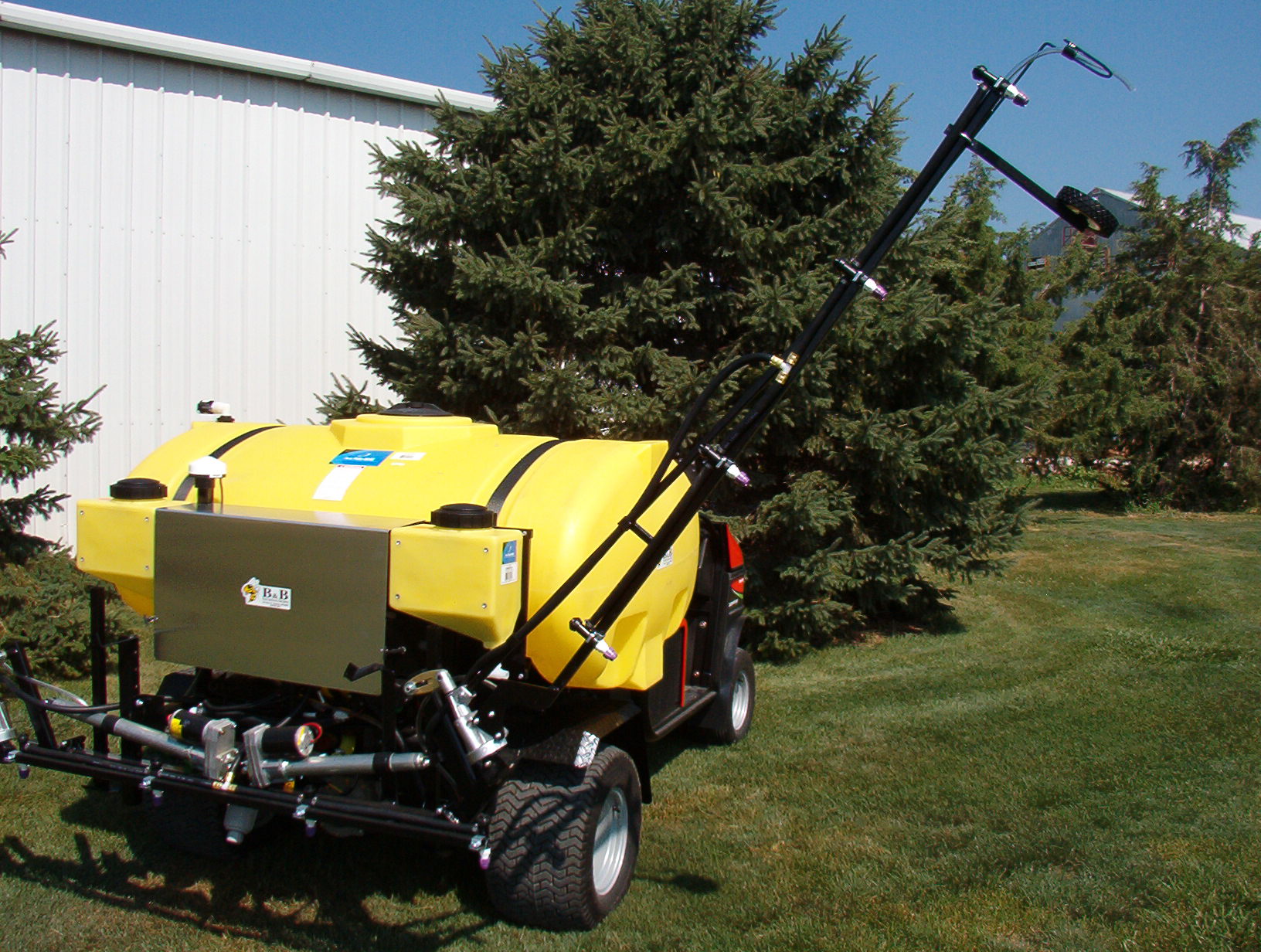

Accessories include anti-siphon fill valve, sprayer stands, foam marker, hand gun & rack, hose reels, electric boom lift, and automatic rate controllers.
